Götene Grading bucket TR HD - Fronteq

Götene Grading Bucket TR 395-2200 litres

The TR grading bucket from Götene is specially constructed for tiltrotators with folded corners and adapted angles.

The Götene Grading bucket TR is a very popular grading bucket for tiltrotators, and thousands have been sold.

The design allows the material to release very well.

Wear strips are standard. As an alternative to wear strips, double back side plates/double bucket bottom plates can be provided if a flat back is desired. Also available with an extended base and a welded cap.

Suitable for excavators between 8 and 45 tonnes.

Would you like to know more? Contact us if you have any questions about the product!

To our contacts

Add your dynamic field and your info

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Suspendisse varius enim in eros elementum tristique. Duis cursus, mi quis viverra ornare, eros dolor interdum nulla, ut commodo diam libero vitae erat.

Brand: GöteneItem number: Category: Buckets, Grading bucketsArea of use: Construction, HD version, Planning

We reserve the right to make corrections to typing and factual errors in texts and tables. We also reserve the right to adjust model ranges and specifications without prior notice. Images may show products in alternative or optional equipment versions.

Characteristics

  • Robust construction with angles for optimal use.
  • Folded corners for tiltrotators.
  • The material releases very well.
  • Wear strips are standard.
  • As an alternative to wear strips, double back side plates/double bucket bottom plates can be provided if a flat back is desired.
  • HD = Heavy Duty design for reliability and durability.
  • An optional S-mount is included as standard, B-mounts are available as an option.
ButtonButton

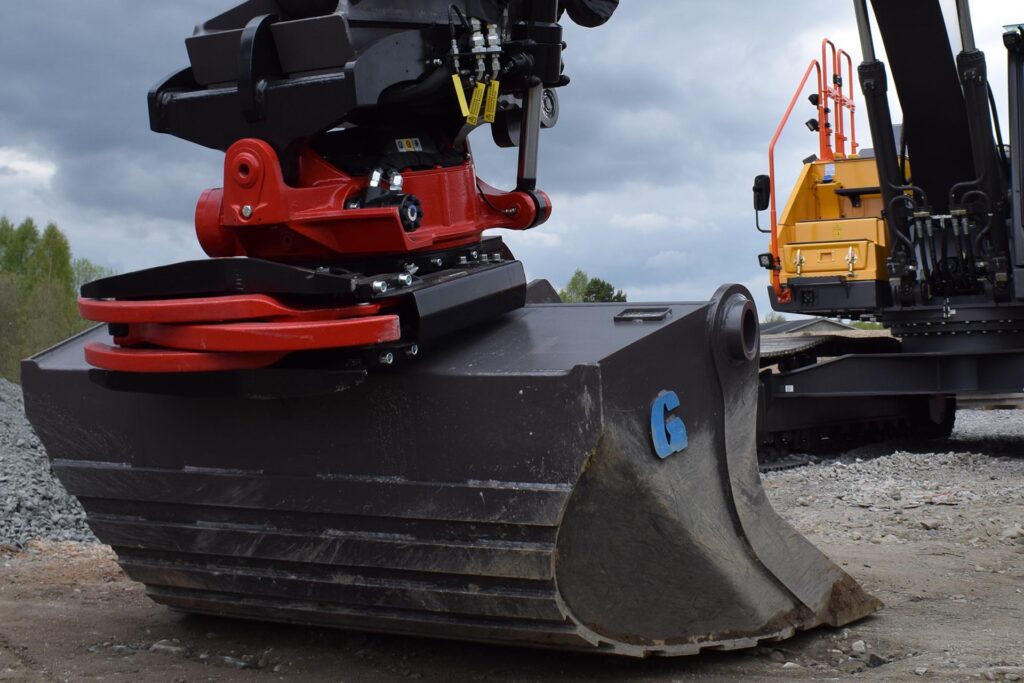

Götene planning bucket RT

Options

  • Extended bucket bottom by 100 mm (increases the volume about 5-10% depending on the model).
  • Welded cap on the grading bucket.
  • Double bucket bottom plates instead of wear strips.
ButtonButton
Götene planning bucket RT

Technical Data | Götene Grading Bucket TR 395-2200 litres

Item no.Product nameVolume SAEWeight, approx. (kg)Width (mm)Recommended machine weight (tonnes)
85205Grading Bucket TR, HD3952901200/11008 - 10
85208Grading Bucket TR, HD4353101300/11008 - 10
85211Grading Bucket TR, HD4803451300/110010 - 12
85210Grading Bucket TR, HD5203501500/130010 - 12
85215Grading Bucket TR, HD6604501500/120012 - 14
85220Grading Bucket TR, HD7105001600/130014 - 16
85223Grading Bucket TR, HD8105601700/140016 - 18
85225Grading Bucket TR, HD8706601800/150018 - 20
85224Grading Bucket TR, HD10007101600/130020 -22
85227Grading Bucket TR, HD11407751800/150022 - 25
85227WGrading Bucket TR, HD12508201900/160022 - 25
85230Grading Bucket TR, HD13209002000/180022 - 26
85233Grading Bucket TR, HD14509451800/160025 - 28
85234Grading Bucket TR, HD14209852000/180025 - 28
85235Grading Bucket TR, HD165010402000/180028 - 30
85240Grading Bucket TR, HD175011202100/190028 - 35
85242Grading Bucket TR, HD186011702200/200028 - 35
85249Grading Bucket TR, HD200013501900/170035 - 45
85250Grading Bucket TR, HD210014502000/180035 - 45
85251Grading Bucket TR, HD220015502100/200035 - 45
